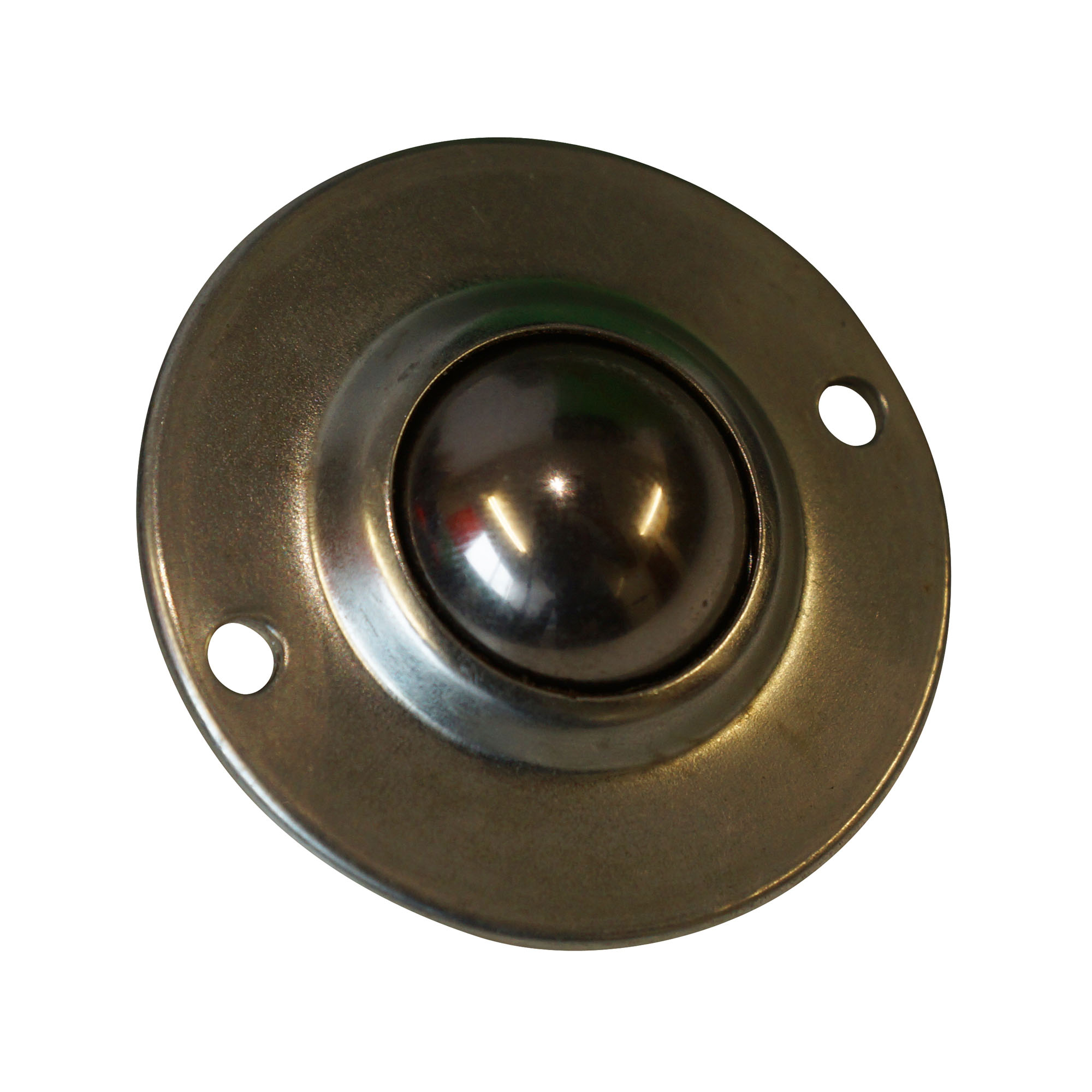

BT254-F

General purpose pressed steel ball transfer unit with a low profile and dirt exit hole.

• Two Hole Flange Fixing
• Ø25.4mm Ball
• Carbon Steel Balls & Housing (3025-13)

Request a Quote

"*" indicates required fields

Company

This field is for validation purposes and should be left unchanged.

First name*

Last name*

Email*

Phone*

Company name*

Job title*

Country*

City*

Industry*

Products

Product

Quantity

Notes

Message

Images (if applicable)

Drop files here or

Accepted file types: png, jpg, jpeg, heic, Max. file size: 25 MB, Max. files: 3.

CAPTCHA

Max Diameter (mm) – A	56
Working Height of Ball (mm) – B	14.6
Body Diameter (mm) – D	34.7 +/- 0.2
Under Flange to Base (mm) – E	14.6
Flange Thickness (mm) – F	4
Centres of Fixing Holes (mm) – G	45.5 +/- 0.2
Hole Diameter of Fixing Holes (mm) – H	4.5
Seating Hole Diameter (mm) – O	35.5
Load Ball Material	Carbon Steel
Support Ball Material	Carbon Steel
Unit Housing Material	Carbon Steel – Bright Zinc Plated
Load Capacity Ranges	51 < 100 kg
