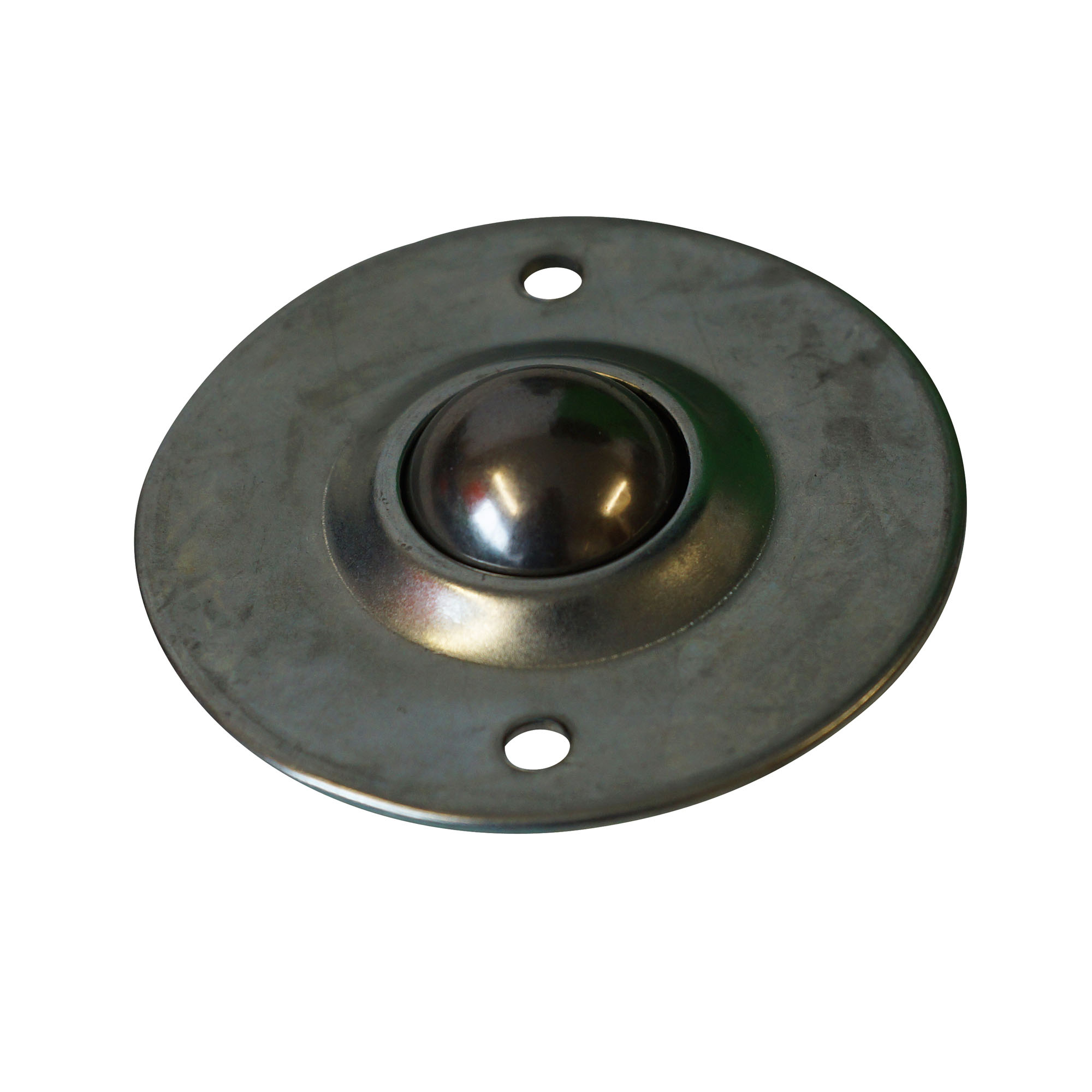

BT253-F

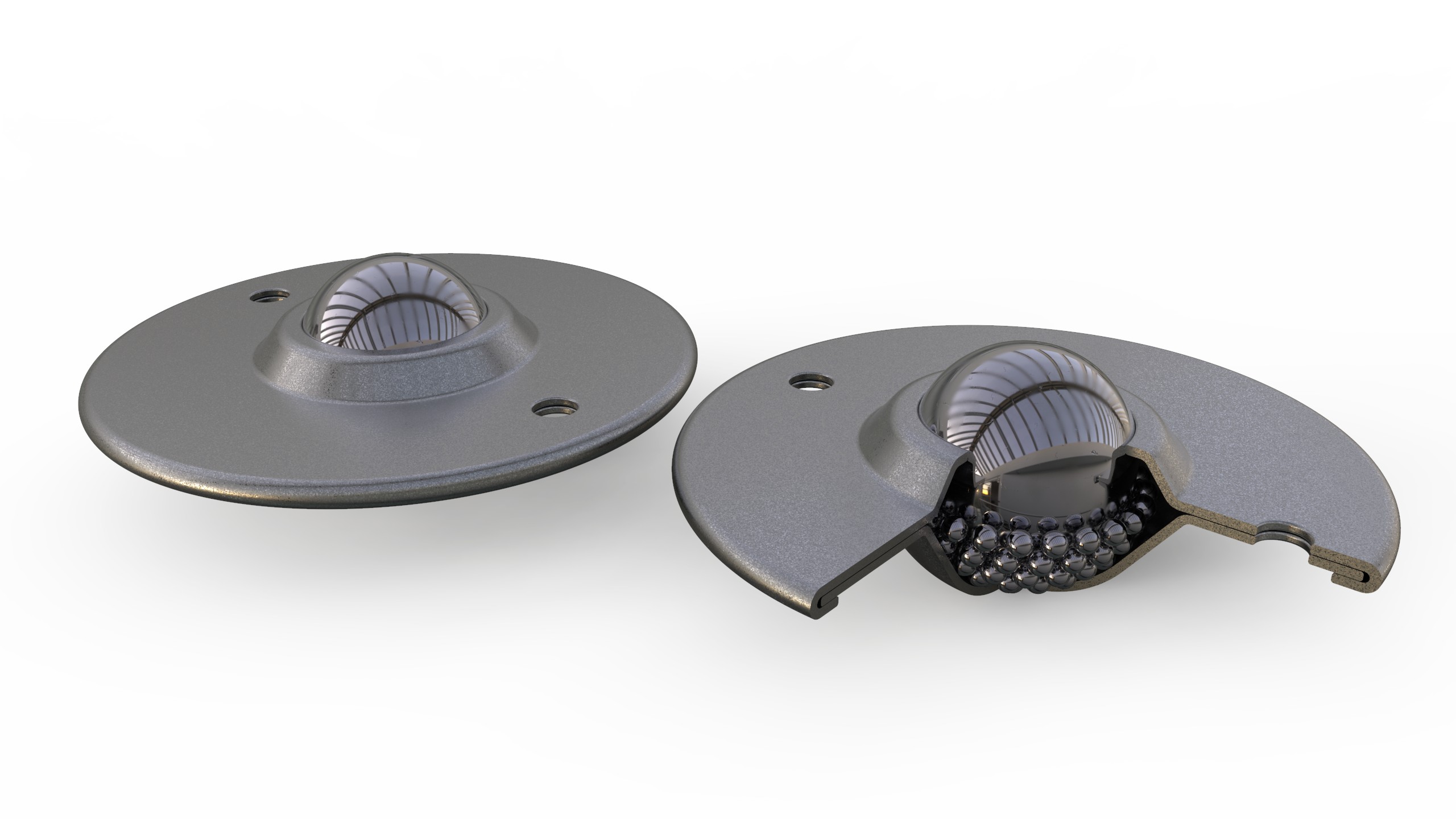

General purpose pressed steel ball transfer unit with a low profile and dirt exit hole.

• Two Hole Flange Fixing
• Ø25.4mm Load Ball
• Carbon Steel Balls & Housing (1000-13)
• Stainless Steel Option Available (1000-15)
• 51 < 100kg Load Capacity Range

Enquire Now

Request a Quote

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

First name*

Last name*

Email*

Phone*

Company name*

Job title*

Country*

City*

Industry*

Products

Product

Quantity

Notes

Message

Images (if applicable)

Drop files here or

Accepted file types: png, jpg, jpeg, heic, Max. file size: 25 MB, Max. files: 3.

Specifications

Features, Benefits & Uses

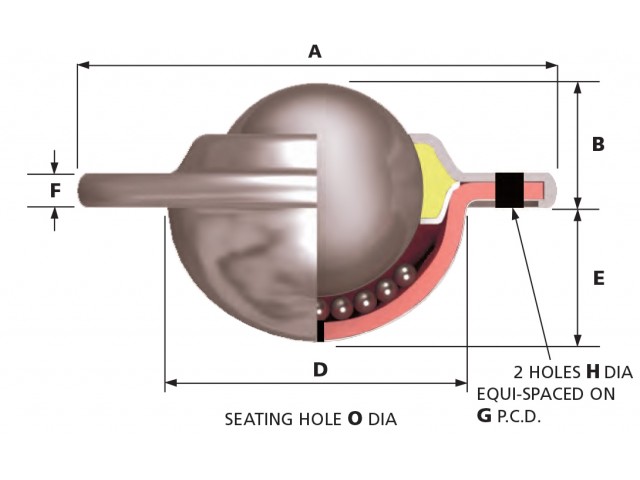

Specifications

Max Diameter (mm) – A	73
Working Height of Ball(mm) – B	14.2
Body Diameter (mm) – D	37.2 +/- 0.2
Under Flange to Base (mm) – E	15.8
Flange Thickness (mm) – F	3.5
Centres of Fixing Holes (mm) – G	55.6 +/- 0.2
Hole Diameter of Fixing Holes (mm) – H	5.1
Seating Hole Diameter (mm) – O	38.1
Load Ball Material	Carbon Steel
Support Ball Material	Carbon Steel
Unit Housing Material	Carbon Steel
Load Capacity Ranges	51 < 100 KG

Downloads

Video Gallery

Similar Products in the Ball Transfers Range

Ball Transfers

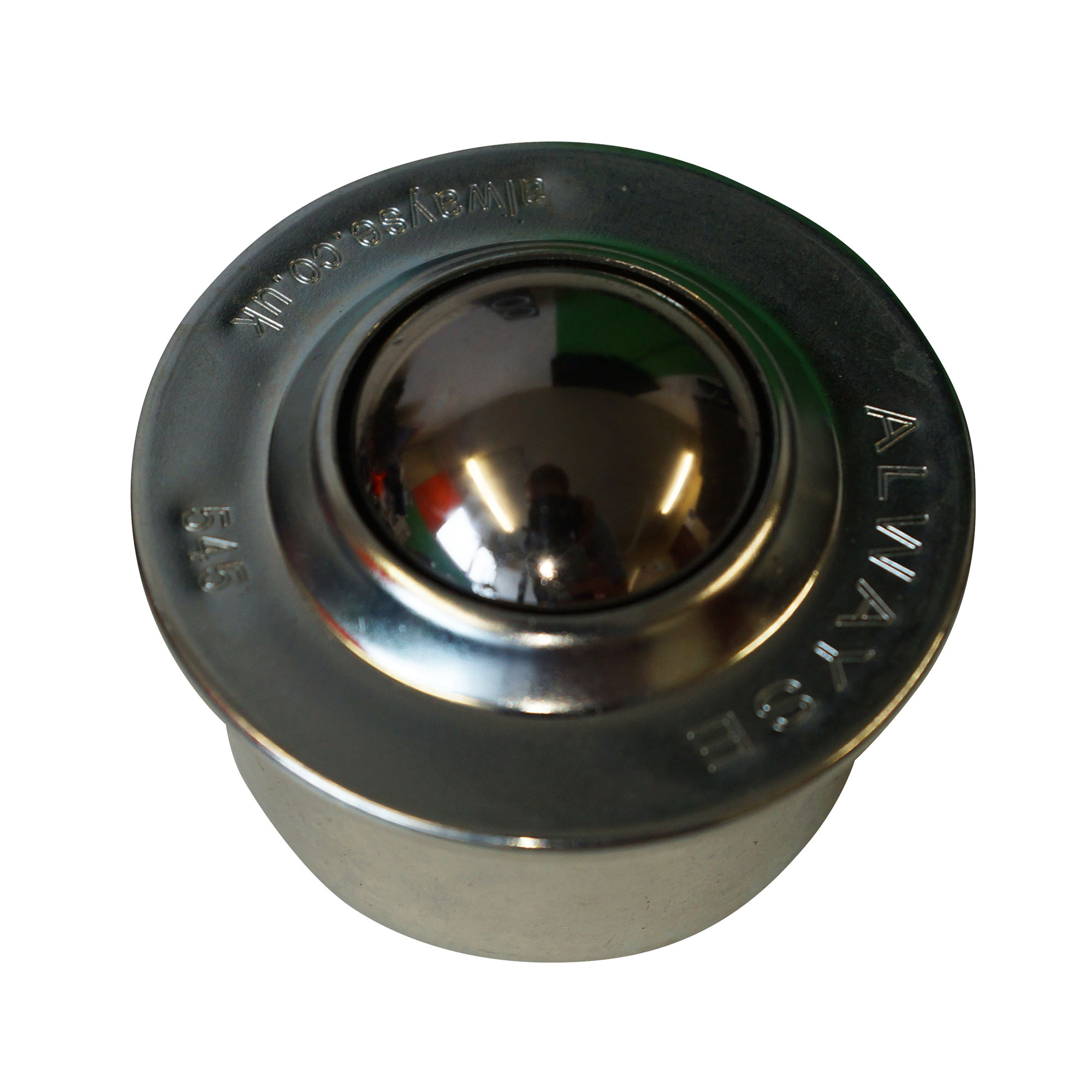

BT545-0-13
