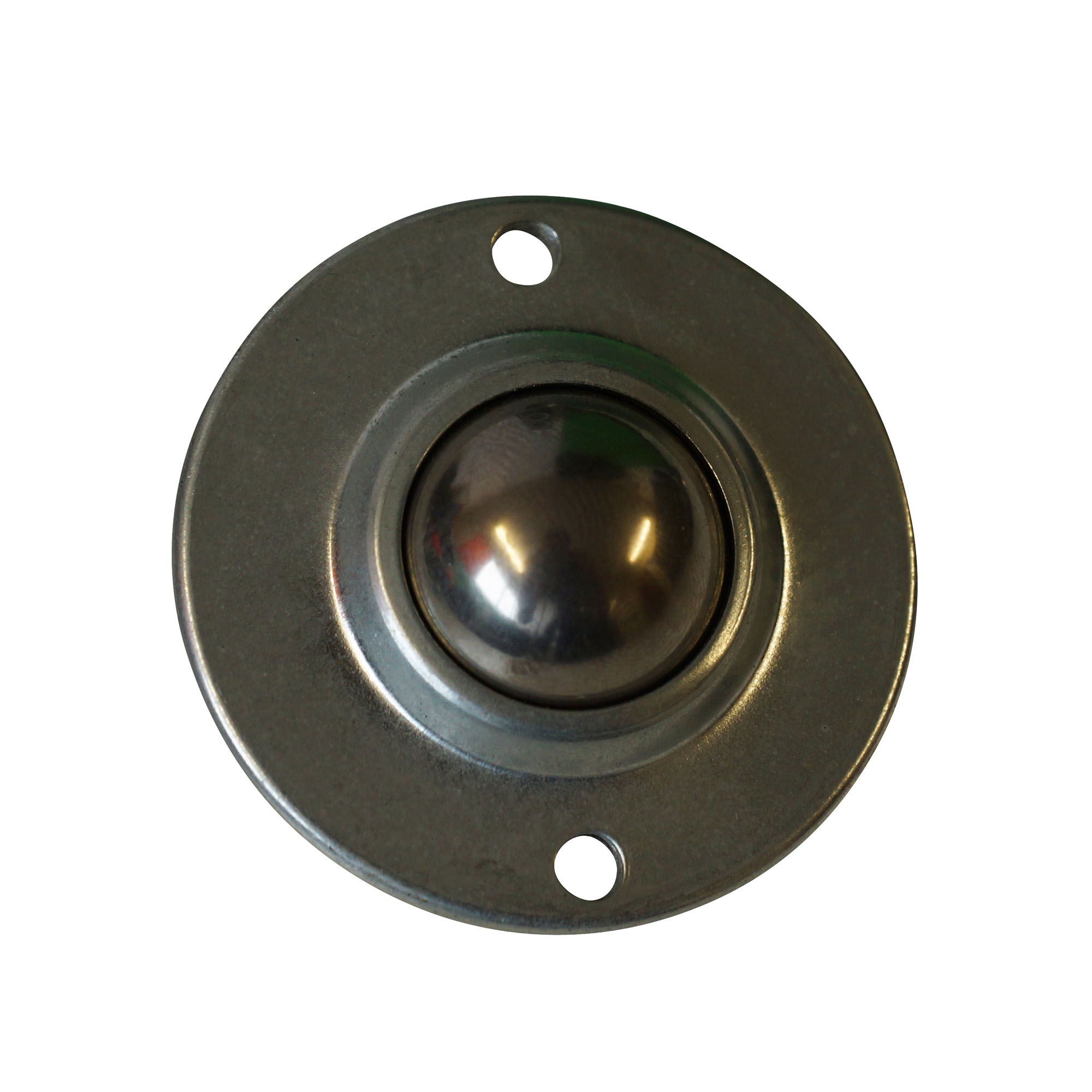

BT254-F SS

• Two Hole Flange Fixing
• Ø25.4mm Ball
• Stainless Steel Balls & Housing (3025-15)

Request a Quote

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

First name*

Last name*

Email*

Phone*

Company name*

Job title*

Country*

City*

Industry*

Products

Product

Quantity

Notes

Message

Images (if applicable)

Drop files here or

Accepted file types: png, jpg, jpeg, heic, Max. file size: 25 MB, Max. files: 3.

Max Diameter (mm) – A	56
Working Height of Ball(mm) – B	14.6
Body Diameter (mm) – D	34.7 +/- 0.2
Under Flange to Base (mm) – E	14.6
Flange Thickness (mm) – F	4
Centres of Fixing Holes (mm) – G	45.5 +/- 0.2
Hole Diameter of Fixing Holes (mm) – H	4.5
Seating Hole Diameter (mm) – O	35.5
Load Ball Material	Stainless Steel
Support Ball Material	Stainless Steel
Unit Housing Material	Stainless Steel
Load Capacity Ranges	51 < 100 KG
